5-146285-3
Manufacturer:
TE Connectivity
Mfr.Part #:
5-146285-3
Datasheet:
Description:

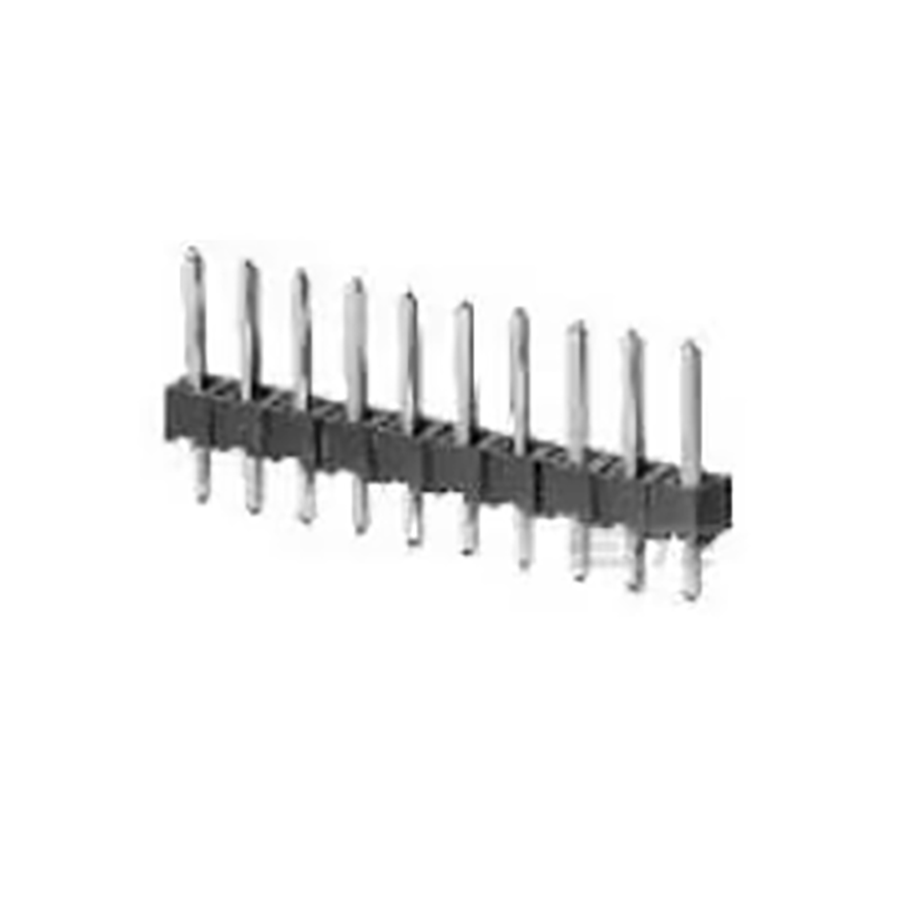

Headers and Wire Housings Through Hole Header, Breakaway Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.21 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 750 V |
| Depth | 2.34 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Lead Length | 2.29 mm |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Header, Breakaway |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Contact Style | Pin |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Keyed | No |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.6002 mm |
| Contact Gender | Male |
| High Temperature Housing | Yes |
| Mating Post Length | 5.842 mm |
| Contact Shape | Square |
| High Speed Serial Data Connector | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Termination Post Length | 2.29 mm |
Stock: 13152
Distributors
pcbx
pcbxUnit Price$0.25648
Ext.Price$0.25648
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25648 | $0.25648 |
| 10 | $0.22570 | $2.25700 |
| 25 | $0.22484 | $5.62100 |
| 50 | $0.21209 | $10.60450 |
| 100 | $0.20006 | $20.00600 |
| 300 | $0.19289 | $57.86700 |
| 500 | $0.18598 | $92.99000 |
| 1000 | $0.17932 | $179.32000 |
| 3000 | $0.17290 | $518.70000 |
| 5000 | $0.16671 | $833.55000 |
